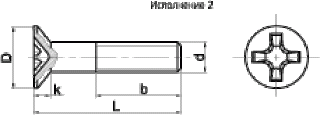

Винты с потайной головкой
Описание:
Марка стали: 10 кп; 10; 10 пс
Класс точности: В
Поле допуска резьбы винтов: бg
| D | 3 | 4 | 5 | 6 | 8 | 10 |
|---|---|---|---|---|---|---|
| D | 5,6 | 7,4 | 9,2 | 11,0 | 14,5 | 18,0 |
| k | 1,65 | 2,2 | 2,5 | 3,0 | 4,0 | 5,0 |
| b | 12,0 | 14,0 | 16,0 | 18,0 | 22,0 | 26,0 |
| L | 6-30 | 6-40 | 10-50 | 10-60 | 16-60 | 20-70 |
| L,mm | Масса 1000 штук винтов, кг | |||||
|---|---|---|---|---|---|---|
| 6 | 0,362 | 0,701 | - | - | - | - |
| 7 | 0,406 | 0,777 | - | - | - | - |
| 8 | 0,449 | 0,854 | - | - | - | - |
| 9 | 0,492 | 0,930 | - | - | - | - |
| 10 | 0,536 | 1,007 | 1,636 | 2,445 | - | - |
| 11 | 0,579 | 1,083 | 1,758 | 2,620 | - | - |
| 12 | 0,622 | 1,159 | 1,880 | 2,794 | - | - |
| 13 | 0,666 | 1,236 | 2,002 | 2,969 | - | - |
| 14 | 0,709 | 1,312 | 2,124 | 3,144 | - | - |
| 16 | 0,796 | 1,465 | 2,369 | 3,493 | 6,662 | - |
| 18 | 0,882 | 1,618 | 2,613 | 3,842 | 7,293 | - |
| 20 | 0,969 | 1,771 | 2,857 | 4,191 | 7,924 | 13,05 |
| 22 | 1,056 | 1,924 | 3,102 | 4,541 | 8,555 | 14,05 |
| 25 | 1,186 | 2,153 | 3,468 | 5,064 | 9,501 | 15,54 |
| 28 | 1 315 | 2,383 | 3,835 | 5,588 | 10,447 | 17,04 |
| 30 | 1,402 | 2,536 | 4,079 | 5,938 | 11,079 | 18,04 |
| 32 | - | 2,689 | 4,324 | 6,287 | 11,709 | 19,03 |
| 35 | - | 2,918 | 4,690 | 6,811 | 12,556 | 20,53 |
| 38 | - | 3,147 | 5,057 | 7,335 | 13,602 | 22,02 |
| 40 | - | 3,300 | 5,301 | 7,684 | 14,233 | 23,02 |
| 42 | - | - | 5,546 | 8,034 | 14,864 | 24,02 |
| 45 | - | - | 5,912 | 8,557 | 15,810 | 25,52 |
| 48 | - | - | 6,279 | 9,082 | 16,756 | 27,01 |
| 50 | - | - | 6,523 | 9,430 | 17,387 | 28,01 |
| 55 | - | - | - | 10,304 | 18,964 | 30,50 |
| 60 | - | - | - | 11,177 | 20,541 | 33,00 |
| 65 | - | - | - | - | - | 35,49 |
| 70 | - | - | - | - | - | 37,98 |
